Overview

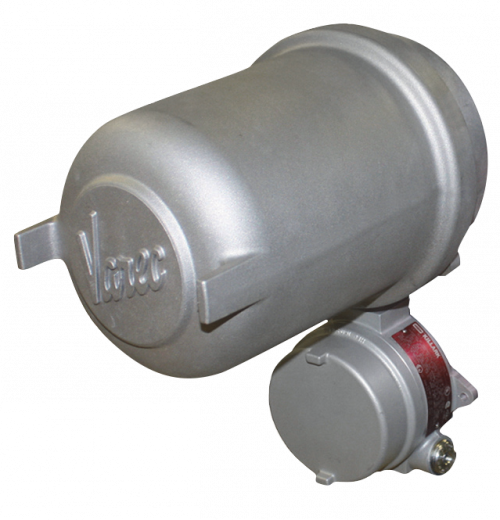

The 8200 Series Current Output Transmitter is a precision analog instrument designed to mount directly to the 2592 Series Cover Position Indicators Gaugehead Type. Designed to provide an increase in current output with a rising level which can also be manufactured with a reverse “outage” reading output and provide a 4-20 mA or 10-50 mA signal which varies in direct proportion to the liquid level. Requires a 30 D.C. voltage for operation which may be supplied by the user or through a 115 or 230 VAC on board power supply.

Nine different factory calibrated level range reference dials (Fractional or Metric) are available with an adjustment of 50-100% of the specified range.
